Horizontal Food Sterilizer Machine , Retort Canning Machine SUS30408

MOQ : 1set

Price : USD 15800 PER SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 8 SETS PER MONTH

Delivery Time : 20-25 WORKING DAYS

Packaging Details : film cover and then loaded to the container

Product name : Canned Food Sterilizing Horizontal Retort Sterilizer Machine

Applicable Industries : Food & Beverage Factory

Core Components : PLC, Motor

Body inner diameter(mm) : 700mm

Body thickness(mm) : 4

Material : SUS30408

Designed Pressure(Mpa) : 0.35

Key Selling Points : Automatic

Contact Now

Stainless Steel Sterilization pot

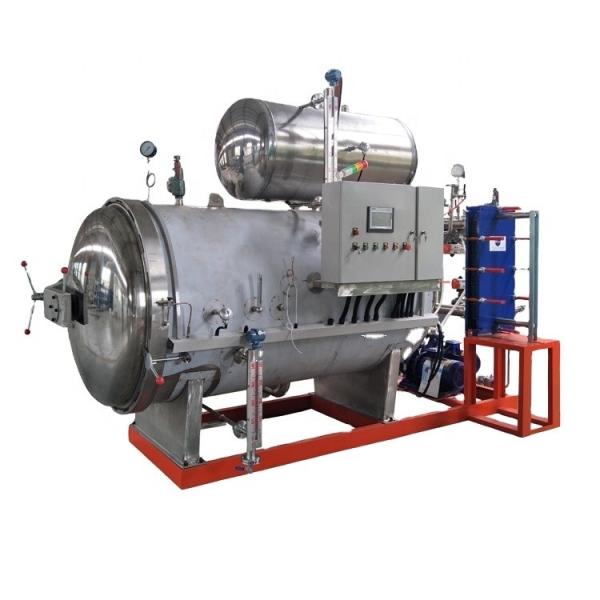

Canned Food Sterilizing Horizontal Retort Sterilizer Machine

The sterilization pot is composed of pot body, pot cover, opening device, locking wedge, safety interlocking device, track, sterilization basket, steam nozzle and several pipe orifices.

The pot cover is sealed with inflatable silicone rubber heat-resistant sealing ring, which ensures reliable sealing and long service life.

It is characterized by large heating area, high thermal efficiency, uniform heating, short boiling time of liquid and material, and easy control of heating temperature.

According to different products and packaging sterilization methods can be divided into:

1. Spray sterilization: spray sterilization has won the favor of a large number of customers with its unique way of spraying and rising and cooling in stages.It is especially suitable for sterilization of glass bottled products and beverage.

2. Steam sterilization: steam sterilization as the use of the longest sterilization method, its wide application of sterilization products still make it in the rapid development of sterilization pot and mature today have a place.And in the tinned can sterilization has an irreplaceable position.

Type	RNDL700	RNDL900	RNDL1000	RNDL1200	RNDL1300
Body inner diameter(mm)	700	900	1000	1200	1300
Body length(mm)	1200	1800	2400	3600	4000
Total capacity (m3)	0.33	1.35	2.16	4.6	6.5
Body thickness(mm)	4	4	4	5	5
Install power(Kw)	5	7	8.5	11	11
Designed Pressure(Mpa)	0.35	0.35	0.35	0.35	0.35
Designed Temperatue(℃)	147	147	147	147	147
